Cybersecurity and Secure KVM

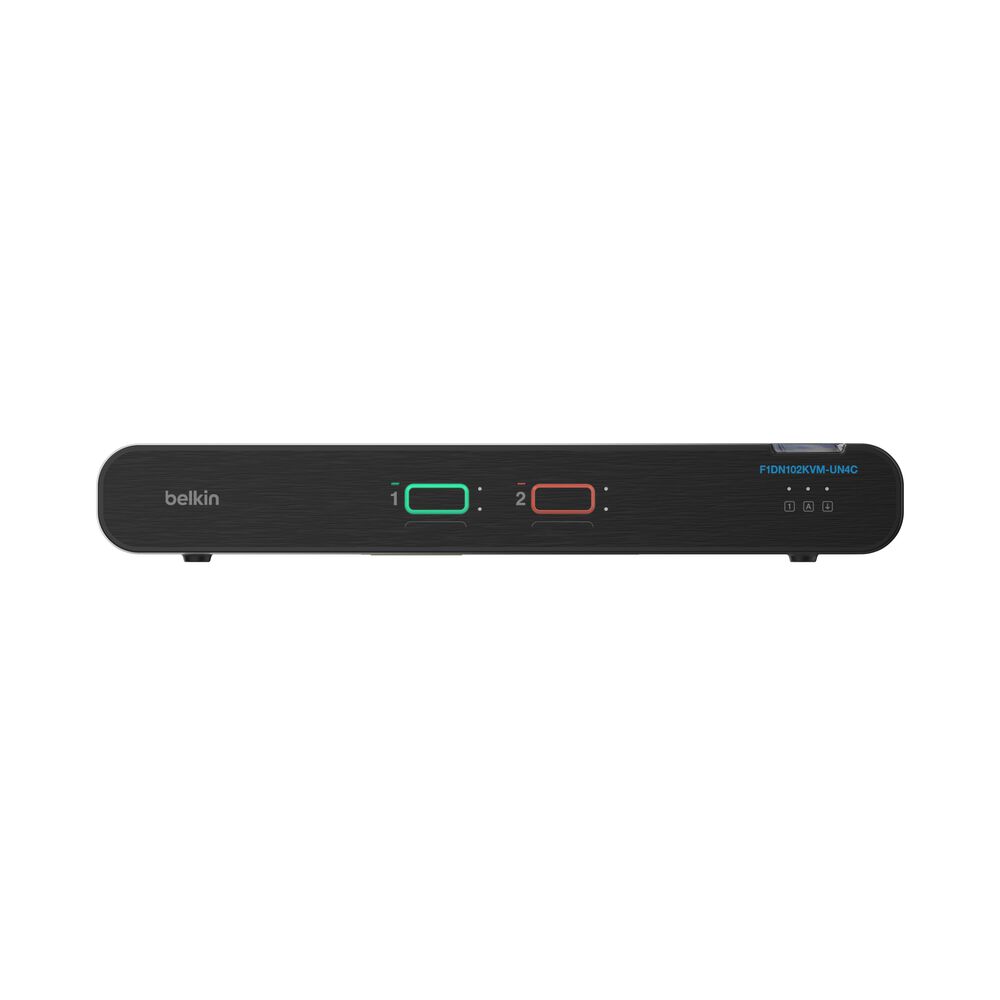

IsoClave RED/BLACK Secure KVM Switch, 2-Port Single Head
SKU: F1DN102KVM-UN4C
Cybersecurity and Secure KVM
IsoClave RED/BLACK Secure KVM Switch, 2-Port Single Head
- Designed to meet requirements for red/black isolation between enclaves specified in CNSSAM TEMPEST/01-13, Table 2 and Table 6, 60dB of isolation for digital signaling.*
- Configured for the latest Common Criteria and NIAP cybersecurity standard: NIAP Protection Profile for Peripheral Sharing Devices 4.0.
- Secure and ready to deploy platform:
- Preinstalled isolating host cables enable efficient deployment, while providing the highest level of isolation in any commercial SKVM.
- Situational awareness:
- Convenient preconfigured port coloring with the option to change the color scheme, ensures front panel facilitates channel identification, reducing operator errors (channel 1 = green, channel 2 = red).
- Innovations for optimal user experience:
- Compatible with the Belkin SKVM Remote with Integrated USB Keyboard, delivering the ultimate solution for decluttering the desk while enhancing the operator's awareness of the security domain they're working in.
- Designed for use on government and military networks.
- Tamper-proof system:
- Always-on, battery-backed, active anti-tamper circuit protects the unit while in transit and after deployment from a breach.
- TAA-compliant: Assembled in the USA; U.S.-based technical support; secure packaging ensures integrity from factory to user site.
- DisplayPort and USB A-to-B isolating host cables with ferrite chokes are preinstalled with tamper-resistant screws to ensure compatible cables are used out-of-the-box.
- HDMI host and console video ports, analog audio ports, and RCU port (remote control) blocked to ensure optimal security and improve isolation. Users change SKVM channel via front panel of the SKVM unless they are using the Belkin Remote Control with Integrated Keyboard (F1DN008KBD).
- Protected by a 3-year warranty with the option to extend 1 or 2 years.
*Note: Electrical isolation does not imply TEMPEST certification.
- Belkin IsoClave RED/BLACK Secure KVM Switch, 2-Port Single Head with preinstalled host USB and Video cables
- 12V, 2.5A Universal Power Supply with Worldwide Adaptors
- Port Naming Labels
- Quick Start Guide and Compliance Documentation
Certifications
- FCC Class A UL CE RoHS ICES RCM
Console Ports
- 1
Display Connection
- DisplayPort
Display Type
- DP
Form Factor
- Desktop
Host Ports
- 2
Keyboard Input
- 1
Keyboard/Mouse Connections
- 2
Keyboard Type
- USB
KVM Maximum Resolution Supported
- 4K@60hz
Local Console Interfaces
- 1
Maximum Resolution
- 4K@60hz
Mouse Input
- 1
Mouse Type
- USB
PC Ports
- 2
Power Rating
- 12VDC 2.5A
Power Supply Included
- Yes
Power Supply Type
- External
Supported Audio Formats
- Digital
Supported Video Formats
- DisplayPort
Ports
- Computers, keyboard, monitors, mouse
Developed for compliance.
NIAP PP4.0, TAA, and Common Criteria compliant for government and military secure environments. Meets stringent Red/Black requirements of CNSSAM-CTTA calling for 60 dB isolation for digital signaling detailed in the committee’s TEMPEST/01-13, Tables 2 and 6.
Choose a solution with enhanced security.
To enhance security of the Secure KVM, audio, HDMI and remote control ports are blocked leaving existing electronics in place while improving isolation.
Protect your network with
highest level isolation.
IsoClave Red/Black Secure KVMs feature integrated cables with higher isolation. These elevated levels meet stringent analog and digital signal isolation requirements.
Ensure compatible cables
are used out-of-the-box.
For a secure deployment, isolating host cables with ferrite chokes are preinstalled into tamper-resistant brackets on the back of the SKVM to prevent the use of incompatible cables.
Optimize operator awareness.
Reduce operator errors with panel channel identification and colorized first two ports. Customizable port coloring and naming on the front panel includes preprogrammed colors on ports 1 and 2 (port 1 is green, port 2 is red).
Advanced security measures.
Anti-tamper label and packaging thwarts unauthorized access. Always-on, battery-backed, active anti-tamper circuit protects the unit from a breach while in transit and after deployment.
Convenient compatibility.
Platform is plug and play, with fully populated cable connections requiring no assembly, and is compatible with the optional Belkin SKVM Remote Control with Integrated Keyboard, Work Surface and Under Desk Mounts.
