https://www.belkin.com/p/universal-displayport-secure-kvm-8-port-dual-head-with-cac/F1DN208KVM-DC-4.html
Cybersecurity and Secure KVM

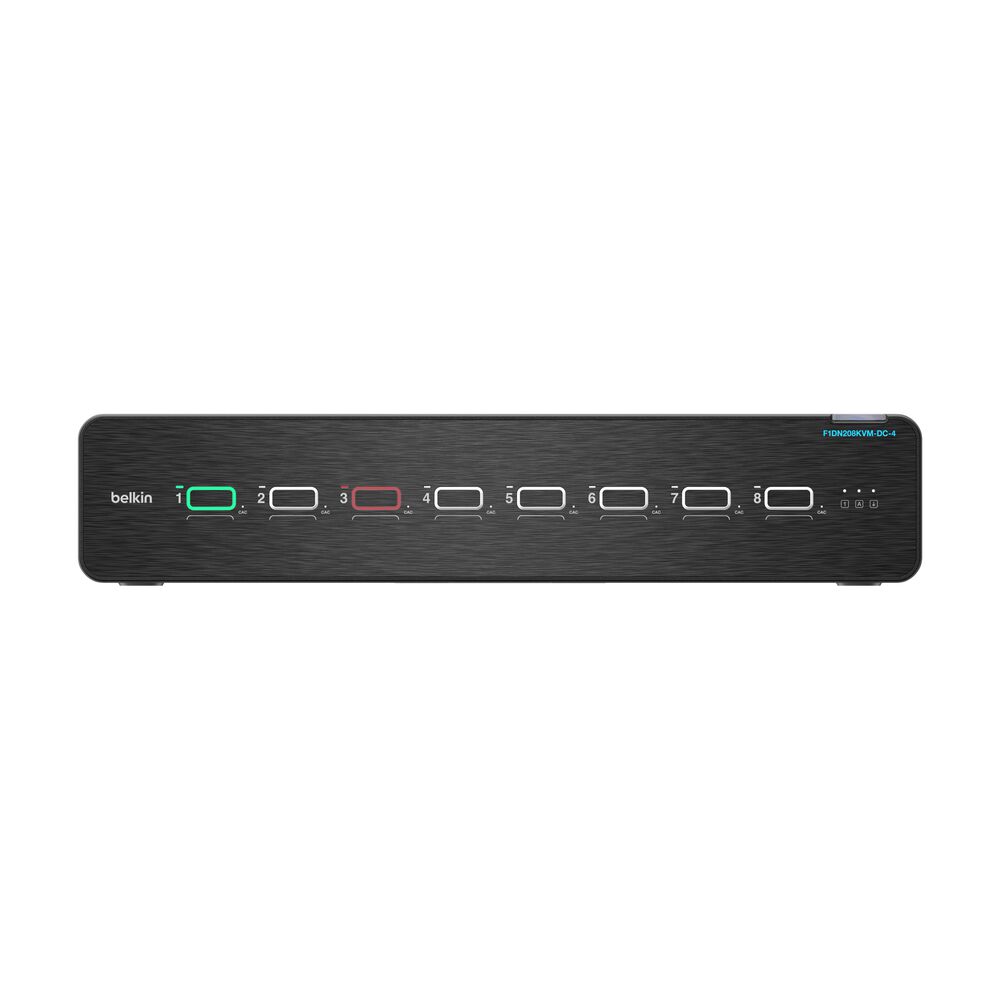

Universal DisplayPort Secure KVM, 8-Port Dual Head with CAC
SKU: F1DN208KVM-DC-4
Cybersecurity and Secure KVM
Universal DisplayPort Secure KVM, 8-Port Dual Head with CAC
Universal DisplayPort Secure KVM Series
Built for government and military networks, our NIAP PP PSD 4.0 SKVM ensures top security. Optical data diodes provide true data isolation, while tamper-proof tech safeguards against breaches. Conveniently pre-colorized with powerful 4K@60HZ display resolution.
- Designed for use on government and military networks and developed for compliance with NIAP Protection Profile PSD 4.0
- Situational awareness:
- Convenient preconfigured port coloring ensures front panel facilitates channel identification, reducing operator errors (channel 1 = green, 2 = white, 3 = red, all others = white)
- Innovations for optimal user experience:
- Compatible with the Belkin Remote Control with Integrated Keyboard (F1DN008KBD) and colorized desktop remotes, delivering the ultimate solution for decluttering the desk while enhancing the operator's awareness of the security domain they’re working in
- True data path isolation
- Optical data diodes prevent peripherals from being used to breach systems
- Tamper-proof system:
- Always-on, battery-backed, active anti-tamper circuit protects the unit from experiencing a breach while in transit and after deployment
- TAA-compliant:
- Assembled in the USA; U.S.-based technical support; secure packaging ensures integrity from factory to user site
- Belkin Universal DisplayPort SKVM, 8-Port Dual Head with CAC
- 12V, 4.0A DC power supply with external worldwide mains connectors for NA, EU, UK, ANZ
- Port naming labels
- Pre-deployment Checklist, Quick Start Guide and compliance documentation
Certifications
- FCC Class A UL CE RoHS ICES RCM
Console Ports
- 2, Dual Monitor
Display Connection
- DP
Display Type
- DP
Form Factor
- Desktop
Host Ports
- 8
Housing Type
- Formed Sheet Steel
Indicator Light Status
- Port selected, EDID, Keyboard, Mouse
Keyboard Input
- 1
Keyboard/Mouse Connections
- 2
Keyboard Type
- USB
KVM Maximum Resolution Supported
- 4K@60Hz
Local Console Interfaces
- 2, Dual Monitor
Maximum Resolution
- 4K@60Hz
Mouse Input
- 1
Mouse Type
- USB
PC Ports
- 8
Power Rating
- 12VDC 4.0A
Power Supply Included
- Yes
Power Supply Type
- Internal
Remote Control Included
- No
Supported Audio Formats
- Digital Audio via DisplayPort
Supported Video Formats
- DP
TAA Compliant
- Yes
Universal DisplayPort SKVM, 8-Port Dual Head with CAC
Belkin Universal DisplayPort Secure KVM 8-Port Dual Head is a DP-connected setup combining cybersecurity provisions, video performance and user experience to deliver a no-compromise solution for the most demanding applications.
Developed for compliance with the highest cybersecurity standards.
Designed for NIAP Protection Profile PSD 4.0, TAA and Common Criteria compliance to meet the stringent security standards required for government and military networks.
Minimize operator errors.
Preconfigured port coloring improves situational awareness and reduces operator errors
Secure KVM Port Guide
- CAC input
- Remote Control input
- Keyboard input
- Mouse input
- Keyboard and mouse USB-B input
- CAC USB-B input
- DisplayPort video outputs
- DisplayPort video inputs
- Power input
Secure supply chain
with active anti-tamper.
Anti-tamper label and packaging thwarts unauthorized access and protects against sophisticated supply chain and internal attacks. Always-on, battery backed, active anti-tamper circuit protects the unit from a breach while in transit and after deployment.
Convenient compatibility
with future proof design.
Compatible with the optional Belkin Remote Control with Integrated Keyboard, colorized desktop remotes, mounting solutions, TAA docks and extender portfolio.
Designed in California | Belkin story of design and quality.
Thoughtfully crafted.
Raise your security measures while enhancing operator efficiency with our state-of-the-art Secure KVM (Keyboard Video Mouse) and Secure KMs (Keyboard Mouse). Specifically crafted to meet NIAP PP4.0 standards.
Embrace a small form factor without compromising on security. Our Modular Secure KVM/KMs are comparable to the size of the latest smartphone.
Unmatched performance.
Elevate your visual experience without compromising on security with the brilliance of our Secure KVMs, engineered to deliver 4K resolution video at a refresh rate of 60Hz across any channel and up to two monitors.
Unlock the full potential of your SKVM/KM with proprietary cables and purpose-built accessories that guarantee an optimal experience.
Safe by design.
Our trusted portfolio is TAA and NIAP PP4.0 compliant, ensuring the highest standards of security and performance.
Enjoy peace of mind with our standard 3-year warranty and dedicated US-based technical support. Our commitment to your satisfaction goes beyond products; it's a promise of unparalleled service and reliability.
